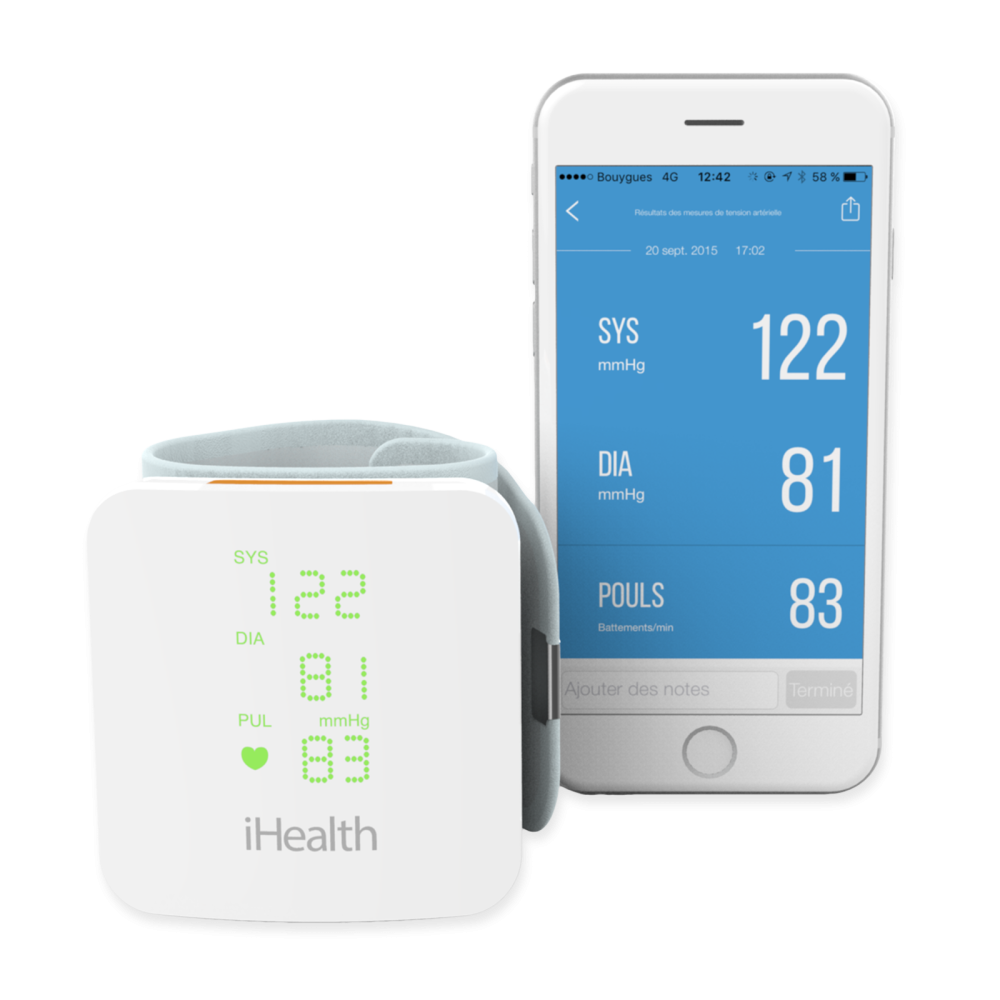

iHealth VIEW BP7s Smart Blood Pressure wrist monitor

Measure your blood pressure in the comfort of your home or anywhere on the road with the iHealth VIEW BP7s compact wrist gauge. It also detects heart rate and warns you about possible arrhythmias. The readable LED display with backlight will show you the currently measured values and its own memory keeps last 120 measured values. The pressure gauge will activate automatically and will help you to find the optimal position for measuring. Inflating and deflating of the wrist is automatic as well.

The iHealth VIEW BP7s gauge can be easily started from the iHealth MyVitals smartphone and tablet application. In addition, it offers a long-term overview of the development of measurement results not only from the pressure gauge, but also from other iHealth devices, such as smart body weight scales, fitness trackers or oximeters. You can find details about your body in one place.

Highly precise results of the measurements were clinically validated; the pressure meter has been awarded with CE certification for medical devices.



Clinically accurate results in the comfort of your home
Smart pressure gauge iHealth VIEW is designed for personal use. The pressure measurement is carried out on the wrist using an oscillometric method. In addition to systolic and diastolic blood pressure, iHealth VIEW also measures heart rate with a waveform display and can detect cardiac arrhythmia. IHealth VIEW has been awarded CE certification for medical devices and the accuracy of the results has been verified by clinical trials.

Completely easy and convenient measurement
Set the comfortable cut on your wrist and fasten it with Velcro. iHealth VIEW is automatically activated and the navigation arrows on the display help you find the optimal position for pressure measurement. Start the measurement yourself by holding the Start / Stop button for 3 seconds. During measurement, the cuff automatically inflates and deflates. Easier than going to the doctor’s and without stress, which can distort the results.

100% functional even without your smart phone
Unlike the previous version, iHealth VIEW works even without a smart phone, so it is not necessary to run an application every time. The internal meter memory stores up to 120 measurements, and synchronization can be performed once per time in the interval as required.



Immediate results on LED display
Currently measured values are shown on an integrated LED backlighting panel, which represents another significant improvement over the previous version. The display is easy to read even in direct sunlight, while the green colour does not hurt your eyes even in the dark. In addition to the measurement results and the navigation arrows, the display shows both the synchronization with the smartphone and the iHealth VIEW battery status.

Long-lasting battery life
In addition to the display, the battery status also shows the applications. In advance, you will know about the need to recharge it. Recharge the battery easily with the included mini-USB cable and a standard phone charger or USB port on your computer. One battery can handle up to 80 measurements per charge.

Measure your pressure anytime, anywhere
Compact and modern design with no needless buttons make iHealth VIEW the ideal meter for everyday use at home or on the go. You can also find a travel case in the package.



Long-term value tracking in iHealth MyVitals application
With iHealth MyVitals, iHealth communicates wirelessly via Bluetooth 4.0 and after the first time it automatically connects by itself. In the application, you can run iHealth VIEW with a single touch of the display and set up reminders for regular measurements.

Above all, iHealth MyVitals closely monitors and stores measured results over the long term. In clear graphs, you can for example monitor the development of blood pressure or heart rate values for a year, a week, or a single day. The individual values are colour-signed according to the World Health Organization (WTO) classification.

Complex monitoring of personal health and sharing the measured values
MyVitals is free for iOS smartphones and tablets (from version ?? and Android version ??) and it also manages results from other iHealth healthcare products such as smart body weight analysers, weight body scales, fitness trackers, or oximeter. You can find your body information in a single place, and you can send measured data directly from iHealth MyVitals to friends, family or doctors in PDF, XLS, and CSV formats.



User accounts
Within the iHealth MyVitals application, you can measure values once or create a user account and save the measured values automatically and store them. On one device, you can create user accounts for multiple users and keep whole family records. Each user enters additional account details such as body height and age in your account to help you better evaluate your measured values.

Cloud account
If you set up your online user account on the iHealth producer’s website and connect it to the account on your mobile device, you can carry out all your talks including monitoring measured values from your computer as well. In case of loss or damage of your mobile device you will not lose your measured values. By simply linking more devices with the online account, for example from your smart phone and tablet, you can measure your blood pressure with any of the connected devices and check your results on each connected device.



Package includes: iHealth VIEW BP7s, charging mini USB cable, travel case


Features:

Smart blood pressure wrist meter

CE certification for medical devices

Accurate results verified by clinical trials

Measures systolic and diastolic blood pressure and heart rate

Oscillometric measurement method

Integrated display with LED backlight showing current results and the process of measuring

Internal memory for 120 measurements

Navigates the user to the optimal measurement position

Automatic activation of the device when placed to your wrist

Self-inflating and deflating and cuffs

iHealth MyVitals application for iOS and Android devices for free

Wireless transmission of measured values to your smart phone via Bluetooth 4.0

It displays the heartbeat curve during the measurement

Definition of multiple user accounts on a single mobile device

The ability to store, edit and view values in your cloud account, access form a computer

Linking multiple mobile devices to one user account

Specifications:

Connection: Bluetooth 4.0

Device dimensions (without sleeve): 72 x 74 x 17,6 mm

Display dimensions: 44 x 26 mm

Weight of the device: 120 g

The length of the sleeve corresponds to the circumference of the arm above the elbow: 135 to 220 mm

Sleeve pressure range: 0 to 300 mm Hg

Measuring range: Sys: 60 to 260 mm Hg / Dia: 40 to 199 mm Hg / pulse: 40 to 180 strokes per minute

Accuracy: pressure ±3 mmHg / pulse: ±5 %

Power: DC 5 V / 1 A

Accumulator: 3,7 V Li-ion 400 mAh

Accumulator life: approximately 80 measurements

Operating temperature and humidity: 5 °C ~ 35 °C, 20 ~ 90 % RH

---

Extensive monitoring of health condition by using iHealth MyVitals application:

iHealth MyVitals application (iOS, Android) is used to monitor the measured values by various iHealth devices, to display personal health trends, to determine the assessment of physical activity and energy intake, to set goals you want to achieve as part of your fitness condition and monitor their fulfillment etc. You can select whether you use the application for the measurement of blood pressure and storage of all values, or you will use its wider options in conjunction with other devices. iHealth MyVitals application is available for free.

Compatibility with platforms
iHealth MyVitals is available for devices with iOS and Android system. As the range of iHealth devices is being extended, additional functionalities are continuously being added to the application. Complexity of records of the users´ health condition is also being extended.

Compatibility with Apple HealthKit
iHealth MyVitals is the first application for medical instruments fully compatible with Apple HealthKit and application “Health”, which is a part of iOS 8.0.1 and later.

Monitored values and compatibility of devices
1) iHealth blood pressure meter
TRACK, FEEL BP5 and SENSE BP7:

heart rate

systolic and diastolicblood pressure
2) iHealth personal weight scale
HS3, LITE HS4, HS5 and CORE HS6:

body weight

BMI index
HS5 and CORE HS6:

body fat

active mass

muscle mass

bone mass

percentage of body water

the ratio of internal organ fat

daily calorie intake
3) iHealth sensor of daily activities and sleep quality
EDGE AM3s a AM3:

the number of steps per day

amount of burned calories

travelled distance per day

sleep quality

length of sleep
4) iHealth swimming sensor of daily activities and sleep
WAVE AM4:

automatic detection of swimming style

percentual distribution of styles

temp numbers, total swimming time

the number of steps per day

amount of burned calories

travelled distance per day

quality of sleep

length of sleep
5) iHealth pulse oximetr
PO3 AIR:

blood saturation (SpO2) with oxygen

heart rate
6) manual input

Detailed information about exercise - the choice of pre-set database of activities

Energy value of food intake - the choice of pre-set food database

History view in graphs
iHealth MyVitals application stores all readings and displays them in a graphs in order to follow the development trend of physical condition. There is a possibility to show the exact numerical values of the measurement by activation of specific points on the graph.

User account
iHealth MyVitals application allows to define multiple users, for example record data of the whole family, enter their personal information such as height and age for assessing their physical condition and also to track their individual readings and trends.

Sharing of all readings
Application iHealth MyVitals enables to send all readings to friends, general practitioner or within family via e-mail.

Cloud account
By creating an online user account on the manufacturer's iHealth website and by its association with your mobile device, you will be provided with an automatic transmission of all your readings from your mobile device to your online account. You can then monitor all operations including tracking of the readings also from the computer. In case of loss or damage of your device you do not lose all your readings. By simply connecting multiple devices, such as smartphone or tablet, with an online account you can perform all measurements with any of the connected devices and monitor the results in all others.

Personal goals
iHealth MyVitals allows you to define the goal to adjust your physical condition in a given time. Exemple entered by user: I want to lose weight by 5 kg in three months, or: I want to maintain body weight, but increase the proportion of muscle mass of 2 kg at the expense of fat in five months. The graphs of your continuous performance and other motivational support are also available.

Planner
iHealth MyVitals has a special tool for planning various activities of the user. For example, it reminds the need to measure blood pressure, to weight, to get some exercise, reminds you that you have not reached the number of steps and number of walked stairs for the day, or that it is time to take a particular medication.
